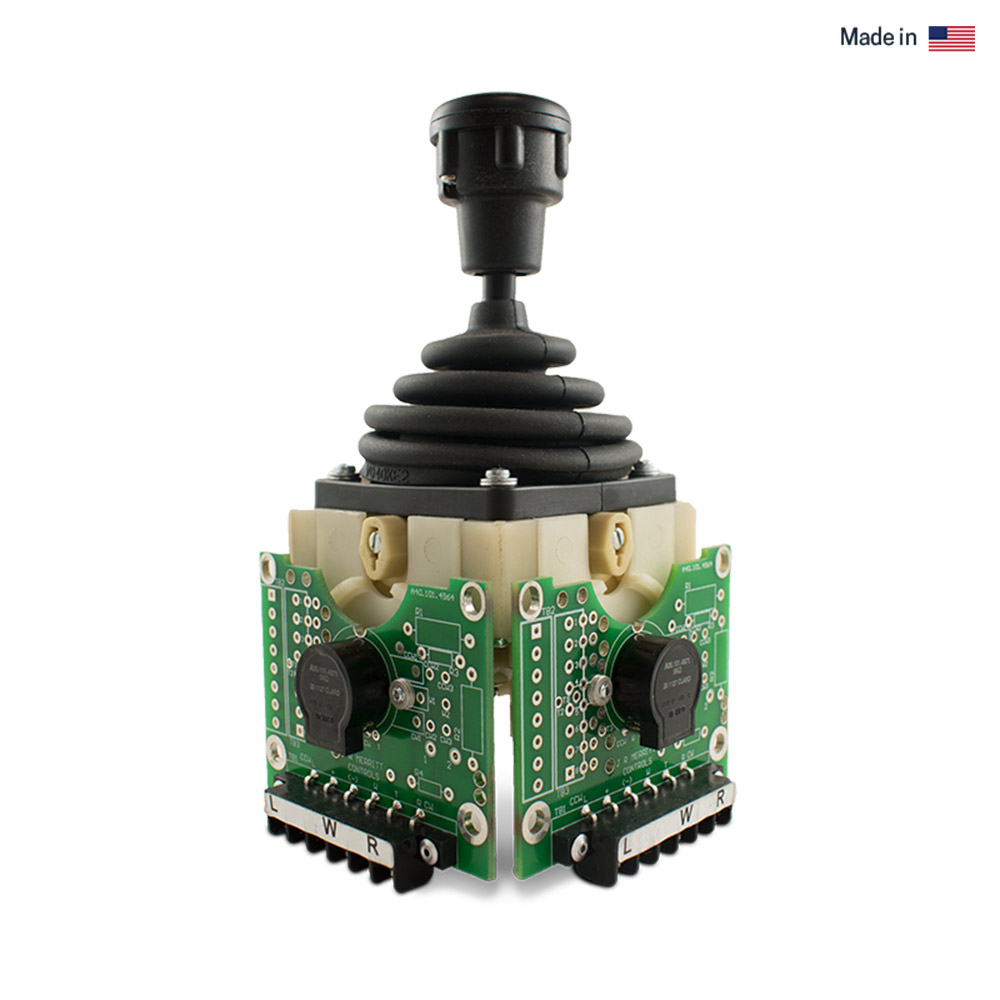

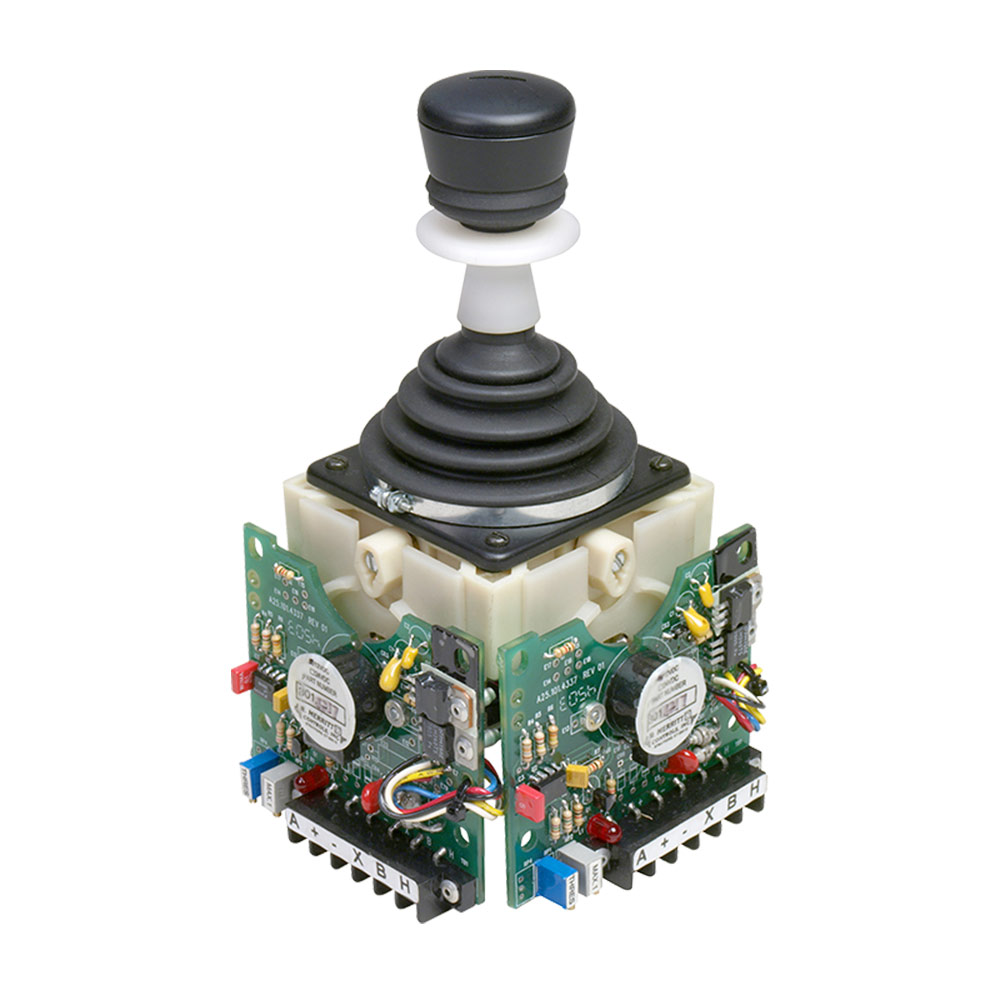

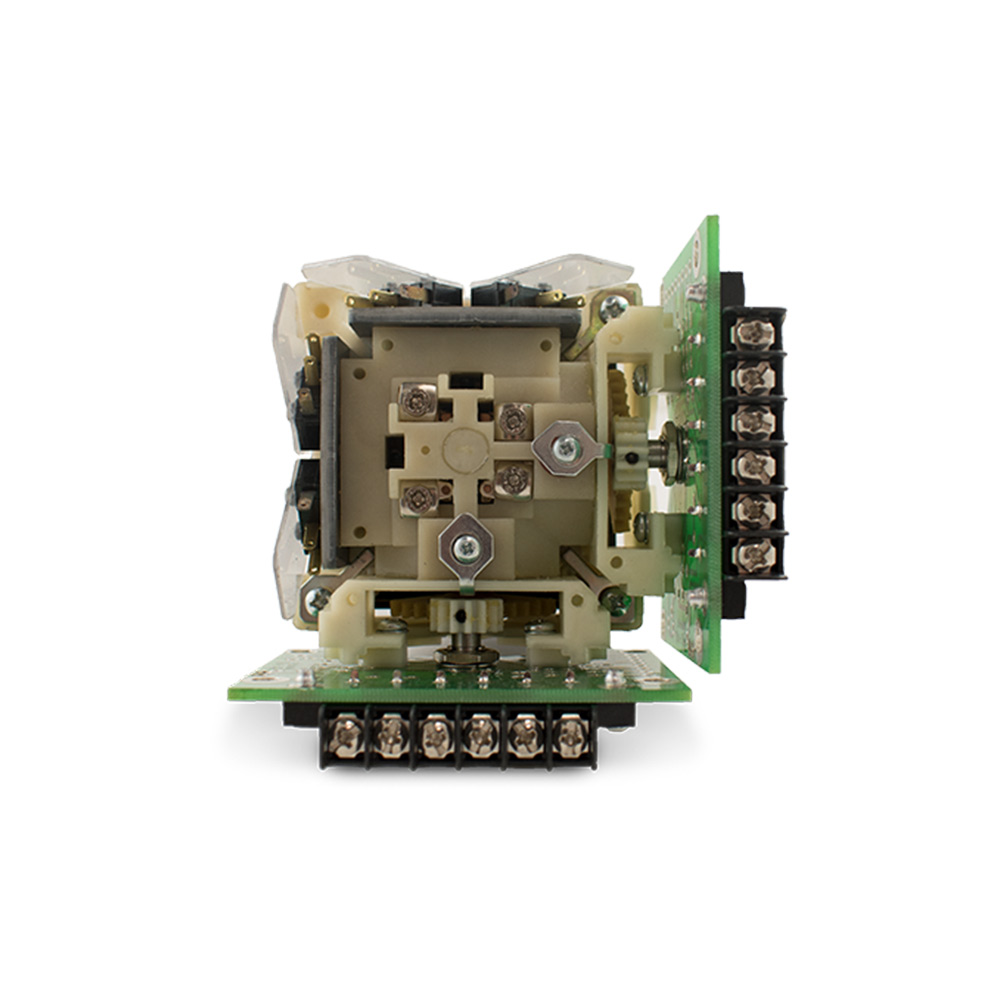

The compact VCS2 multi-axis joystick sports versatility and reliability for a range of applications. The all plastic Zytel housing and specially treated rugged metal components make this device ideal for use in corrosive environments. Single and dual axis controls are also available, as well as twist handle functions.
Inquire nowRugged construction with standard and custom gates
Small panel space requirement
Up to 3 single pole double throw microswitch contacts and 1 potentiometer in each axis
Corrosion resistant components
10 million plus operations
Long life, compression type return spring system
| General Data | |
| # of Axis | Single, Dual or Three* *Third axis is achieved via a twist handle function or thumbwheel. |
| Output Options | Microswitches, Potentiometer & PWM |
| Joystick Action | Spring Return, Friction Brake or Maintained |
| Handle Travel | +/- 37 degrees each axis |
| Gate | Open or Cross |
| Max # of Steps | Up to 3-0-3 |
| Handle Compatibility | Standard Handles, Mechanical Interlock, FG-3, FG-4, FG-5, RH, RHS, BH, MG1, MG2, MG13, MG9 / MG25, MG27, G56 |
| Life | 5 million cycles (spring return) 10 million cycles (friction brake) |
| Materials | Glass filled Zytel body, nickel chromium yoke (properties similar to stainless steel) |
| Est. Shipping Weight | 3 lbs. |
| Est. Shipping Dimensions | 8 in. x 8 in. x 8 in. |
| Electrical Data | |
| Contact Specifications | Switch Type: SPDT (Form C) SS Series Microswitches Max. Number: Up to 4 per axis with potentiometer Up to 6 per axis without potentiometer Current Rating (AC): 5A Voltage Rating (AC): 250 Termination: .110 x .20" quick disconnect Max. Wire Size: 18 AWG |
| Applications |
| The VCS2 is ideal for use in corrosive environments and mobile equipment or vehicles. Typical applications include: • Municipal snow removal equipment • Refuse collecting vehicles • Petro-chemical plants • Food processing plants • Construction machinery • And more |
| Mounting Data | |
| Mounting Style | Panel (from below) |
| Mounting Footprint | 2.84" x 2.84" See literature for additional mounting specifications |
| Environmental Data | |
| IP Rating | IP54 |
| Operating Temperature | -13 to +158 degrees F [-25 to +70 degrees C] |
| Storage Temperature | -40 to +158 degrees F [-40 to +70 degrees C] |
