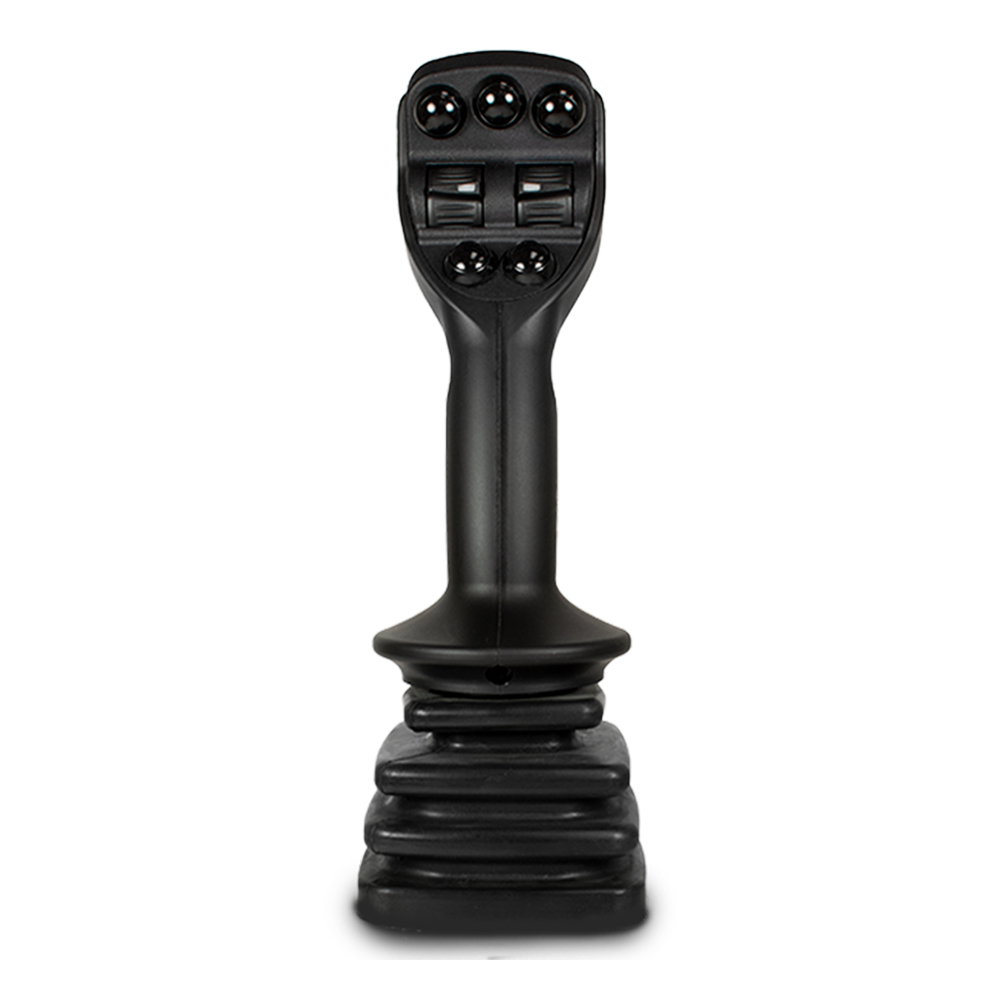

Designed around comfort and performance, the XG1 handle is ideal for left-hand or right-hand operating applications that require multiple functions. With its modular design, the front and rear device plates can be customized to the unique requirements of your equipment.
Inquire nowUnique shape and integrated handrest for maximum comfort and performance.
Straight design for left-hand or right-hand operation.

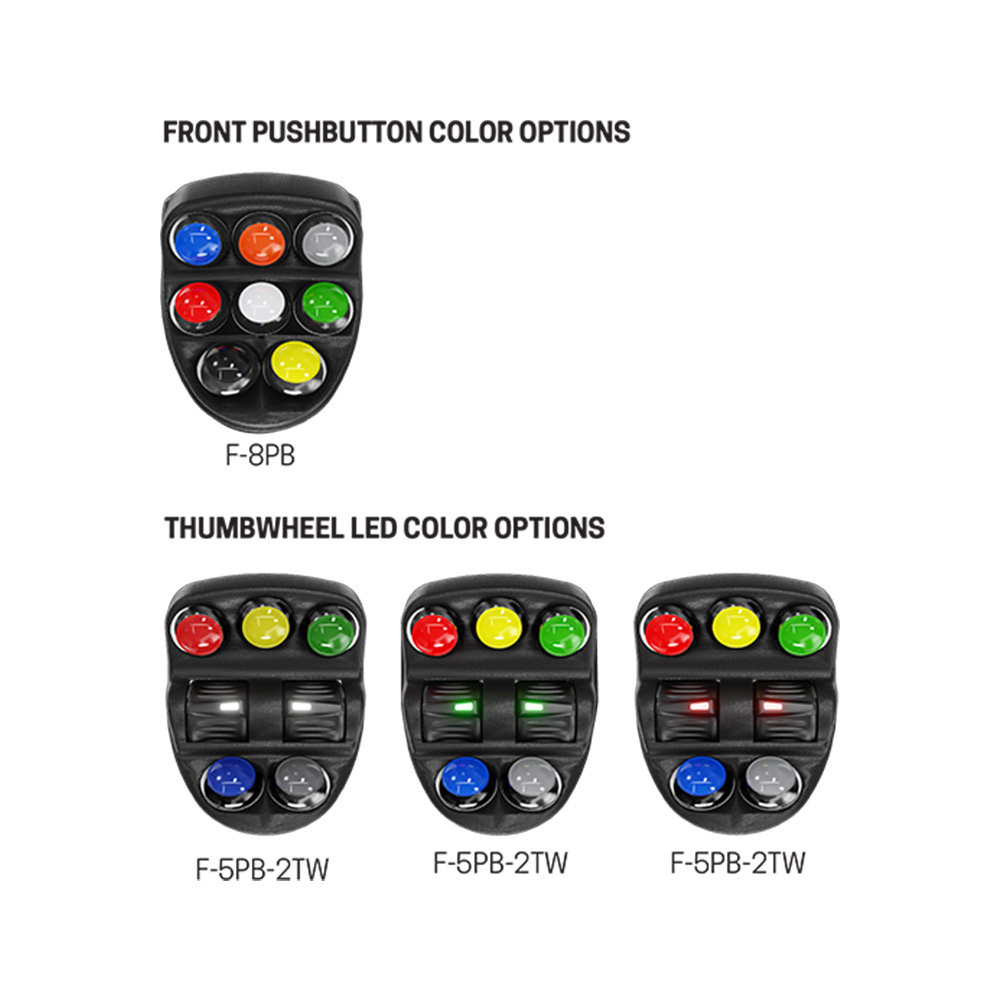

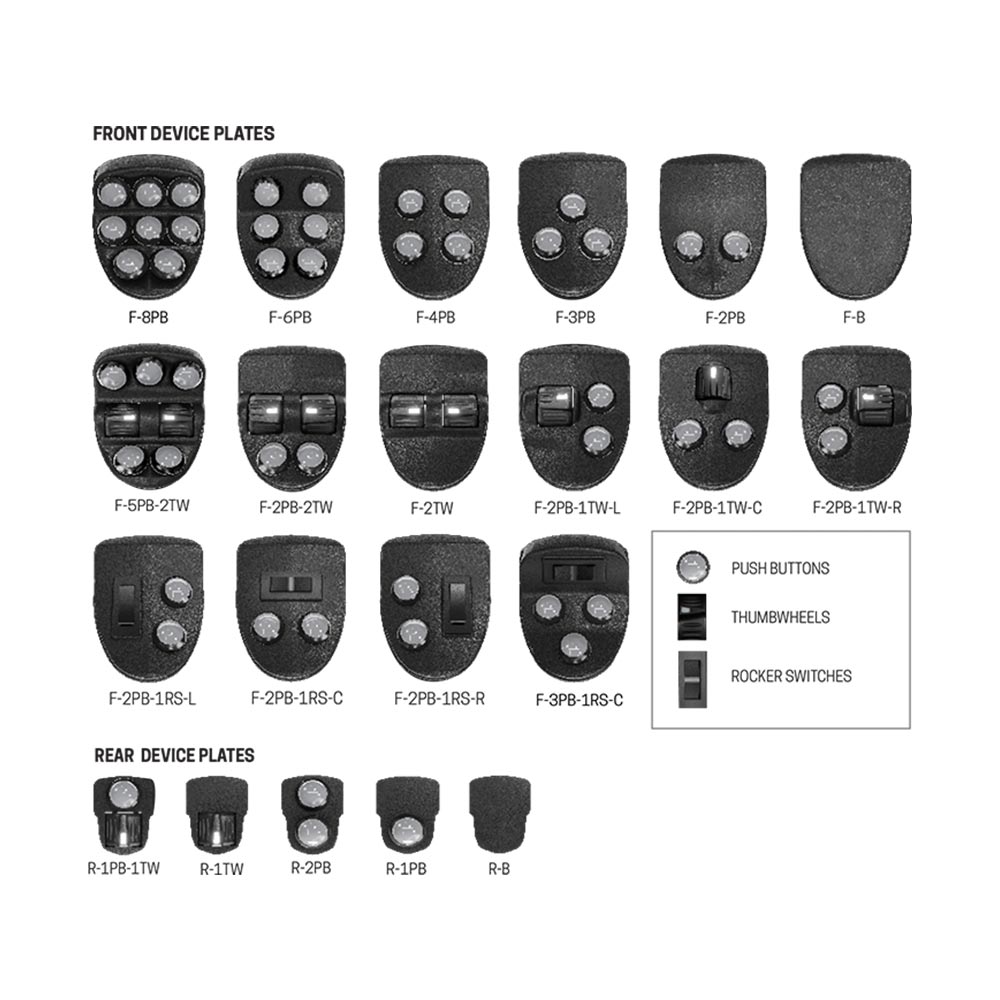

16 standard front device plates available with a range of individually configurable devices, including push buttons, thumbwheels, and rocker switches.
4 standard rear device plates are available with optional button and thumbwheel combinations. Optional push buttons in trigger location are also available.
Custom device plates are available upon request.
| General Data | |
| Type | Fighter Grip, Multi-Function |
| Specification Description | The XG1 handle offers 20 standard device plate combinations with the ability to customize front and rear device plates for maximum adaptability. |
| Joystick Compatibility | Merritt Evolve, HS2, VNSO, VNS2, XL-VNSO |
| Features and Functionality | |
| Push Buttons | Yes |
| Rocker Switch | Yes |
| Thumbwheel | Yes |
| Handrest | Yes |
| Trigger | No |
| Operator Presence Switch | No |
| Mechanical Interlock | No |
| Twist | No |
| Capacitive Hand Detection Sensor | No |
| Technical Data | |

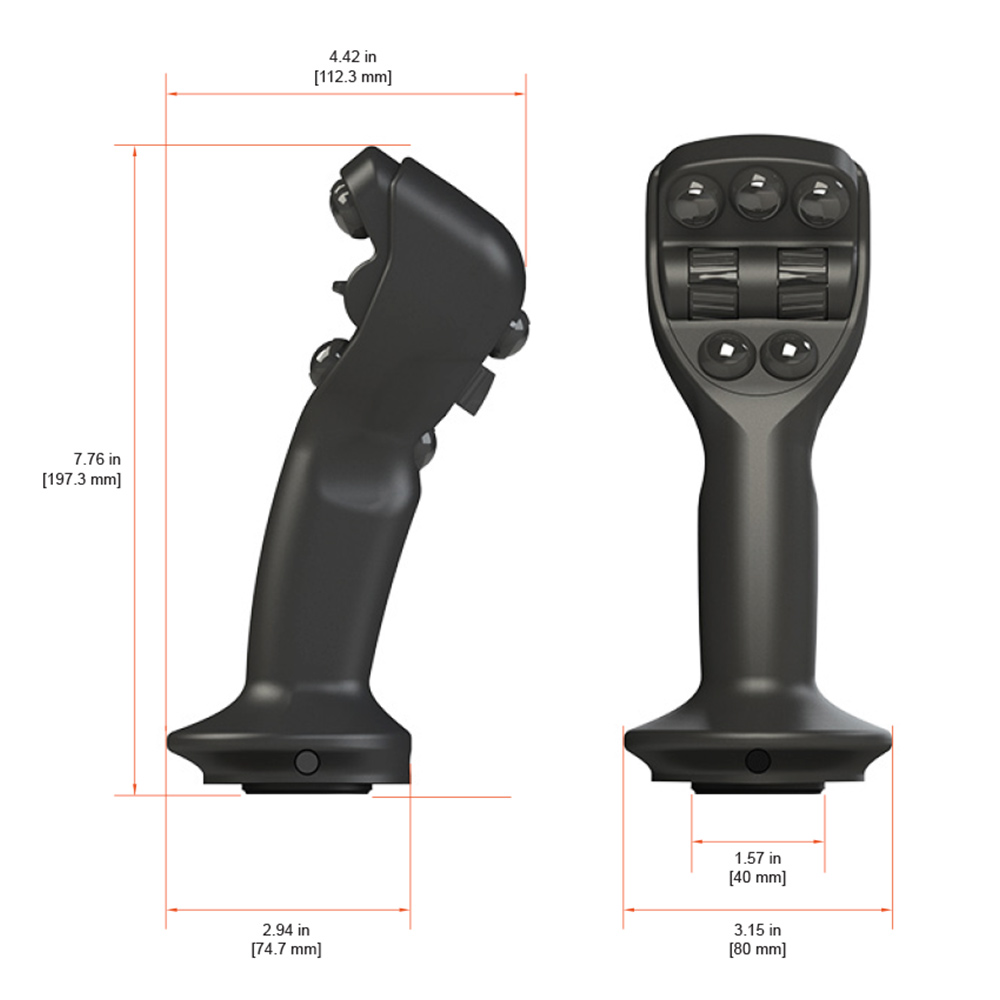

| Handle Height | 7.76 in [197.3 mm] |
| Additional Specifications | Reference product literature for additional specifications |
| Environmental Data | |
| IP Rating | IP54 |
