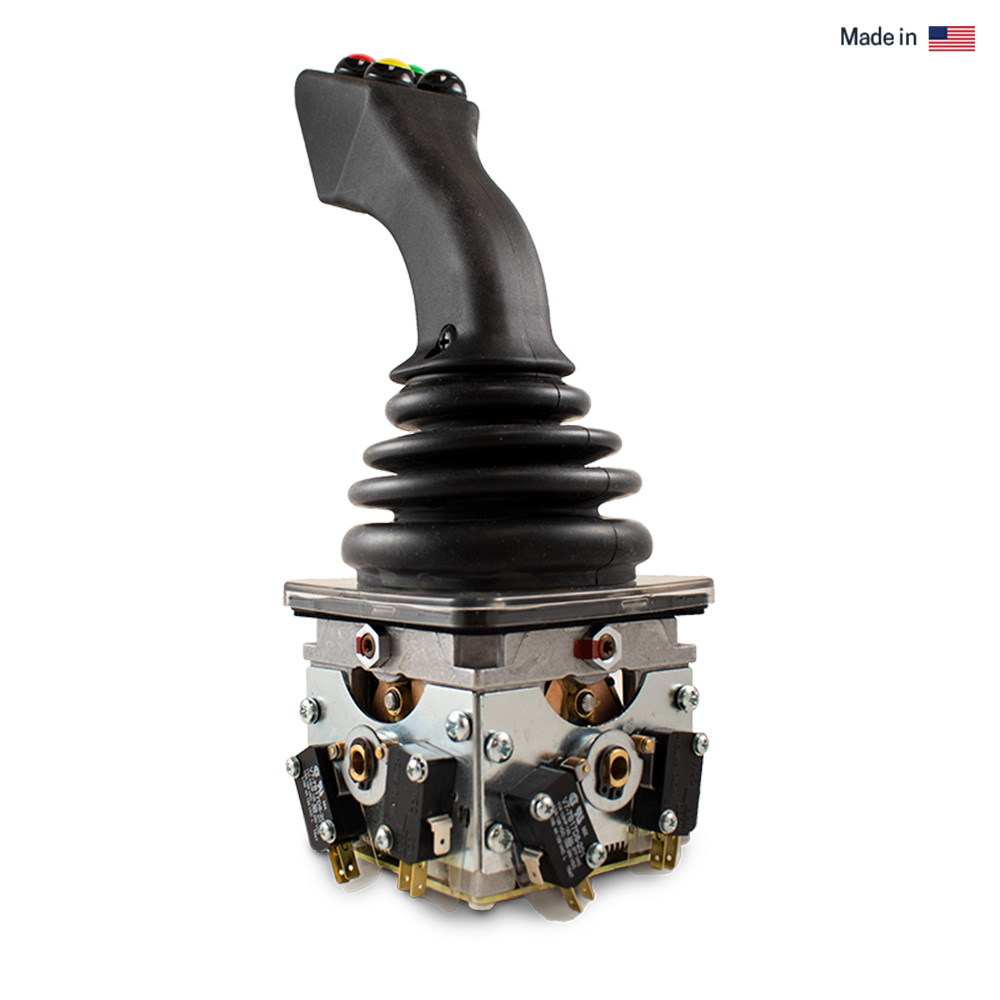

The XL-VNSO joystick shares the same rugged construction and long-life as the standard VNSO, but in a more compact size. This high-duty joystick is often used in applications with space constraints that still require heavy duty construction and operation. Unlike the VNSO, the XL-VNSO can be configured with microswitches, hall-effect and PWM output types.
Inquire nowVersatile design
Super heavy-duty construction
Long-life, dual compression return springs each axis
Nickel chromium gimbal yokes (properties similar to stainless steel)
Hardened steel bearings and polished steel shaft guides
Bronze gate handle stops
Conformal coated electronics to resist moisture
Type V7 11A form C switches.

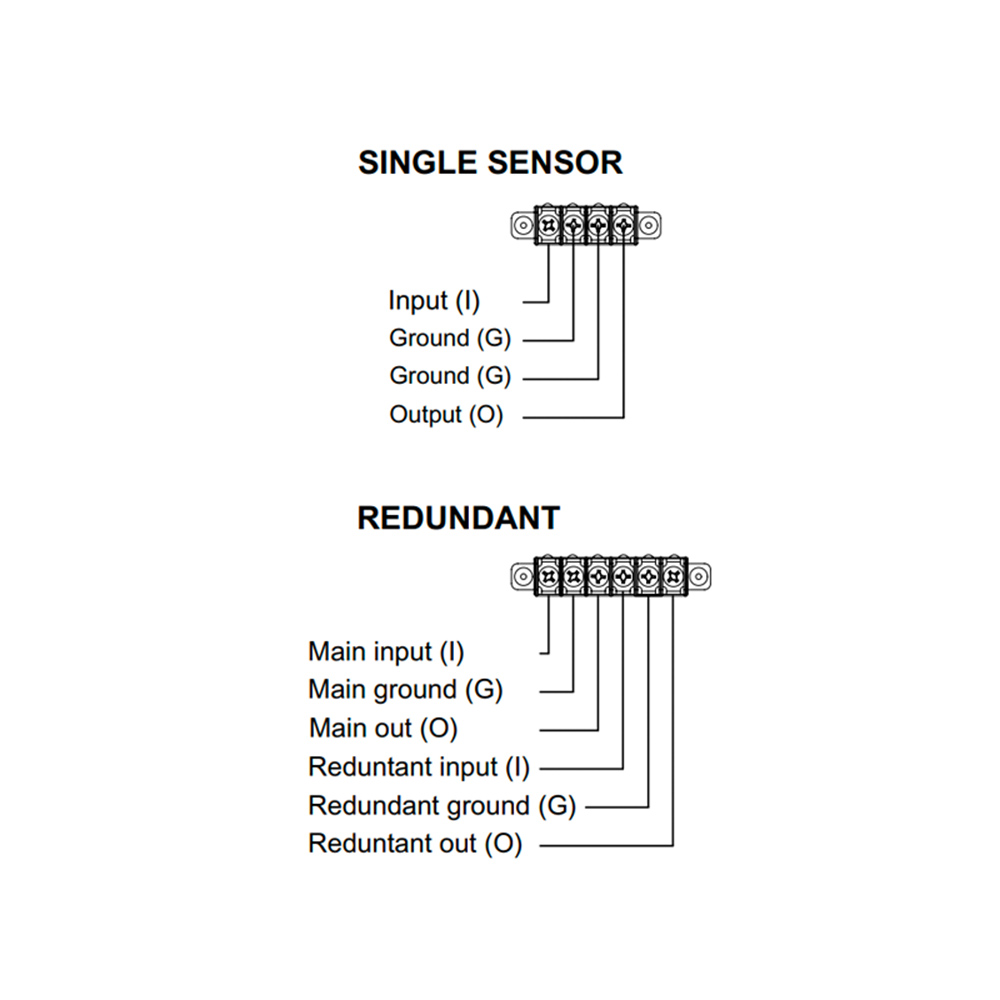

Hall-effect output meets or exceeds CE EMC requirements

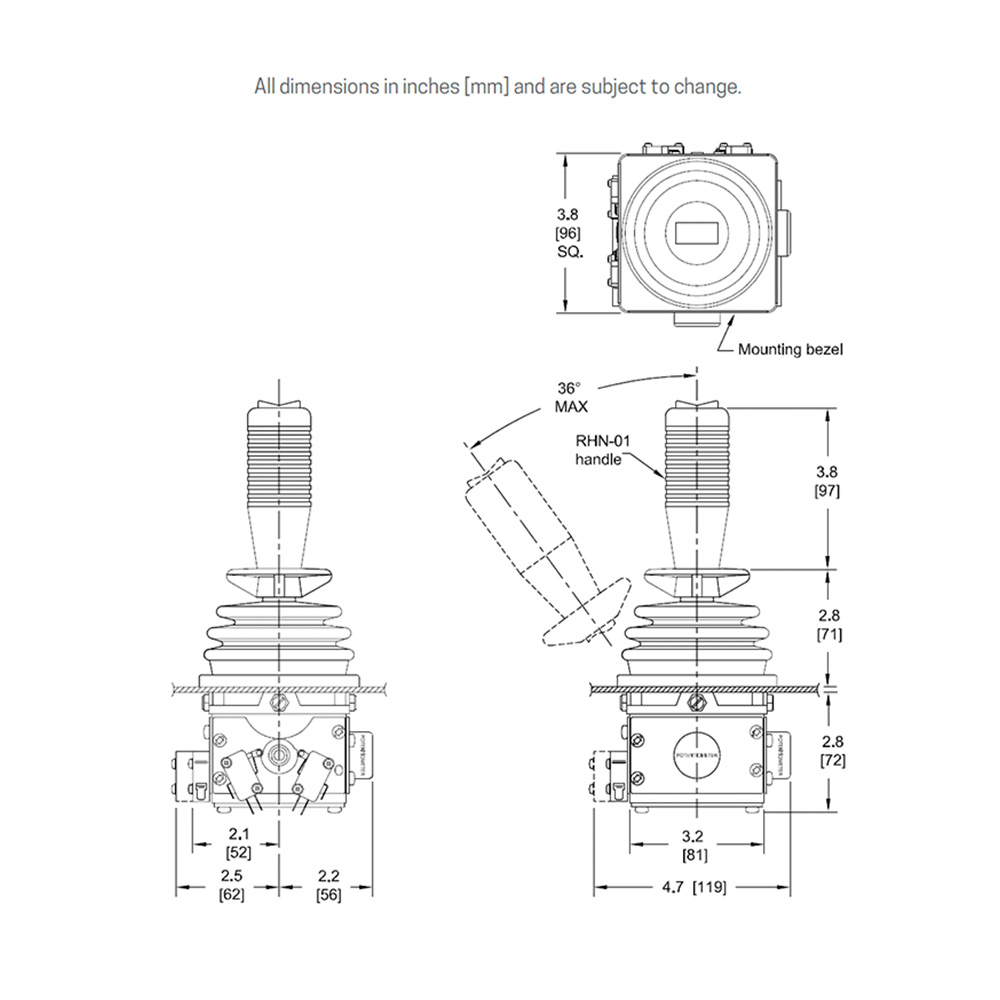

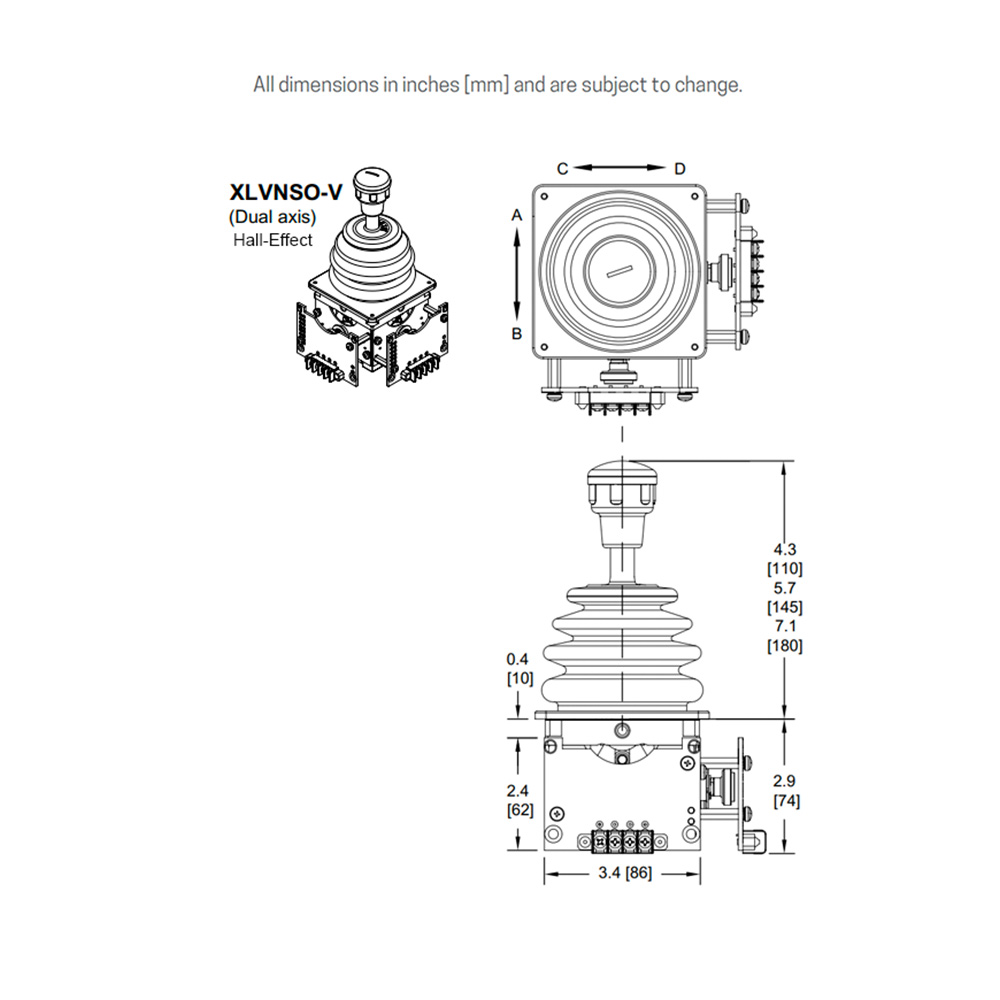

| General Data | |
| # of Axis | Single, Dual or Three* *Third axis is achieved via a twist handle function or thumbwheel. |
| Output Options | Potentiometer, Microswitches, Hall-Effect, PWM & CAN |
| Joystick Action | Spring Return |
| Handle Travel | +/- 36 degrees each axis (potentiometer) +/- 20 degrees each axis (bang/bang and hall-effect) |
| Gate | Open or Cross |
| Handle Compatibility | Standard Handles, Round Ball, Mechanical Interlock, FG-3, FG-4, FG-5, RH, RHS, BH, MG1, MG2, MG13, MG9 / MG25, MG27, G56 |
| Life | 20 million cycles |
| Materials | Aluminum body and nickel chronium yoke. |
| Est. Shipping Weight | 5 lbs. |
| Est. Shipping Dimensions | 13 in. x 10 in. x 8 in. |
| Electrical Data | |
| Contact Specifications | Switch Type: SPDT (Form C) V Series Microswitches Max. Number: Up to 3 per axis Current Rating (AC): 11A Voltage Rating (AC): 250 Termination: .187" x .20" male quick connect Max. Wire Size: 18 AWG |
| CAN Specifications | CANOpen, J1939 or basic CAN protocols 4 analog inputs 8 digital inputs 2 digital outputs See a complete listing of CANbus technical data in ESS408 CAN Based Interface Module Board literature |
| Additional Specifications | Reference product literature for additional specifications |
| Applications |
| The XL-VNSO is often used in high duty applications with limited panel space. Typical applications include: • Logging & forestry equipment • Specialty agricultural equipment • Mining machinery • Mobile cranes • And more |
| Mounting Data | |
| Mounting Style | Panel (from below) |

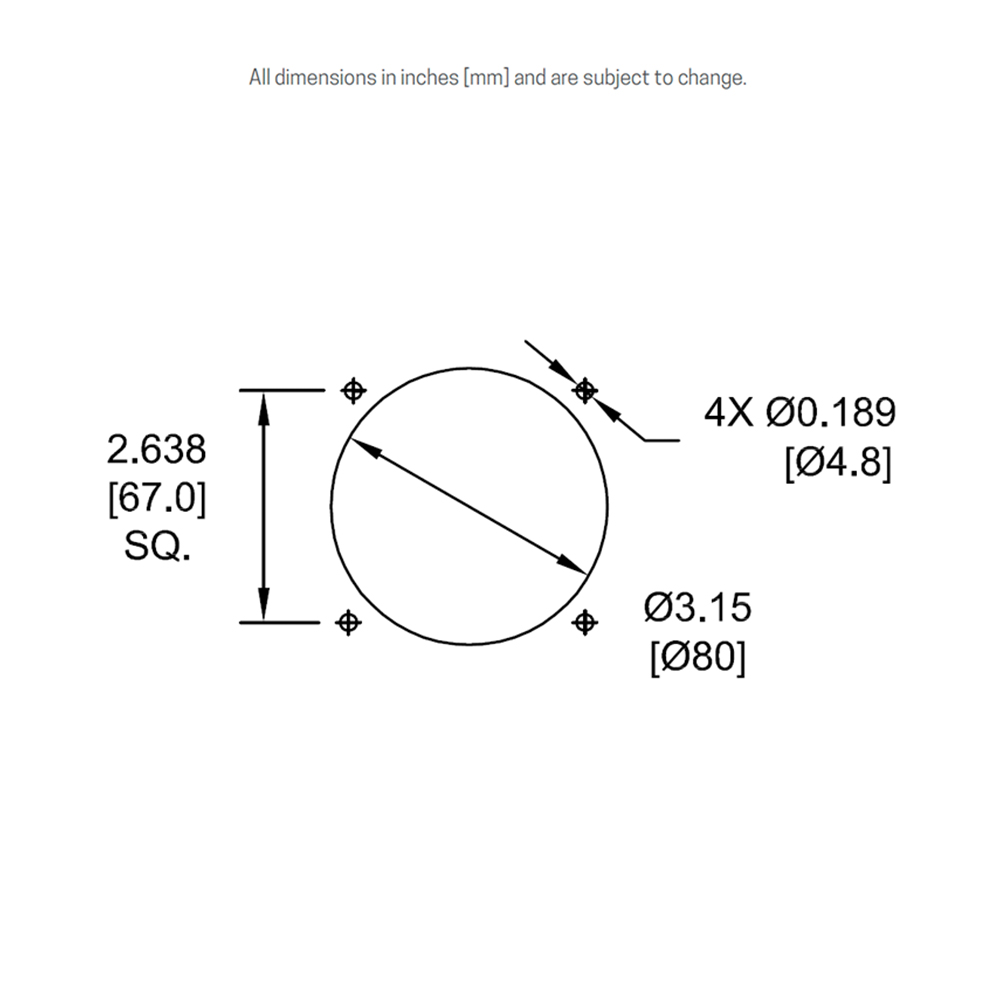

| Mounting Footprint | 3.78" x 3.78" See literature for additional mounting specifications |
| Environmental Data | |
| IP Rating | IP54 |
| Operating Temperature | -13 to +158 degrees F [-25 to +70 degrees C] |
| Storage Temperature | -40 to +158 degrees F [-40 to +70 degrees C] |
